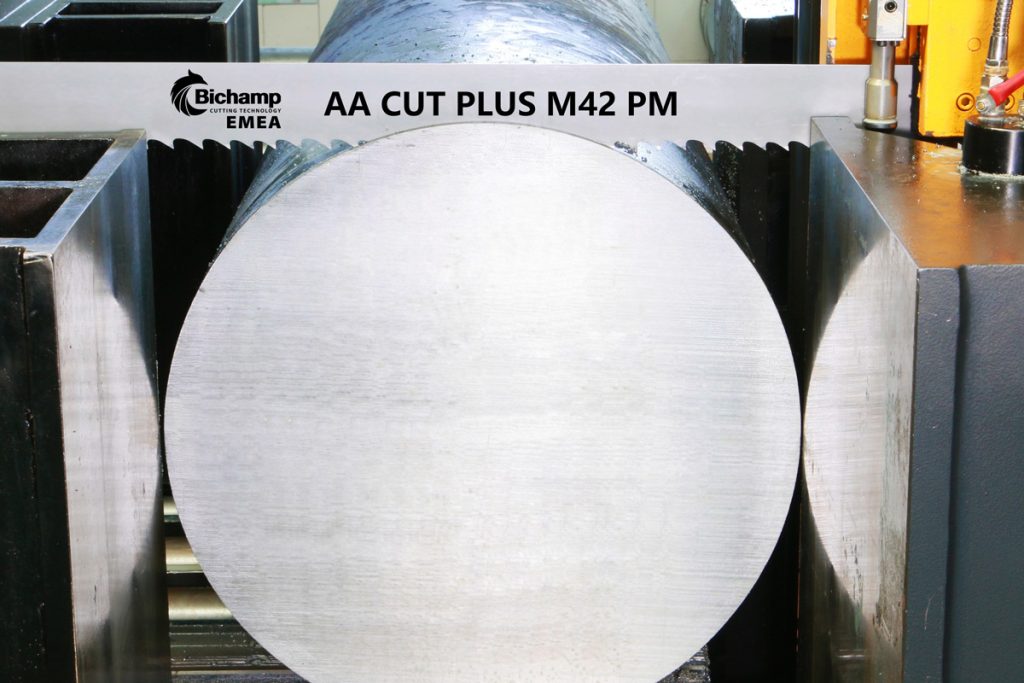

AA CUT PLUS M42 PM
Maximum cutting speed
Benefits
- Specially designed high-low tooth profile for easier material penetration and reduced cutting forces
Features
- Powder metallurgy high speed steel edge
- Premium backing material for optimum fatigue life
- Tooth height difference and special set design for smooth cutting
Stainless Steel
Mold Steel/
Hot-work Steel/
Cold-work Steel
Hot-work Steel/
Cold-work Steel
Heat-resistant Steel
Copper/Brass/Bronze
Titanium Alloy
Technical Data AA CUT PLUS M42 PM
| Width x Thickness | TPI | |||||
|---|---|---|---|---|---|---|
| mm | inches | 0.75/1.25 | 1/1.5 | 1.4/2 | 2/3 | 3/4 |
| 27x0.9 | 1x0.035 | ■ | ■ | |||
| 34x1.1 | 1-1/4x0.042 | ■ | ■ | |||
| 41x1.3 | 1-1/2x0.050 | ■ | ■ | ■ | ||
| 54x1.6 | 2x0.062 | ■ | ■ | ■ | ||
| 67x1.6 | 2-5/8x0.062 | ■ | ■ | |||
| 80x1.6 | 3,15x0.062 | ■ | ■ | |||
