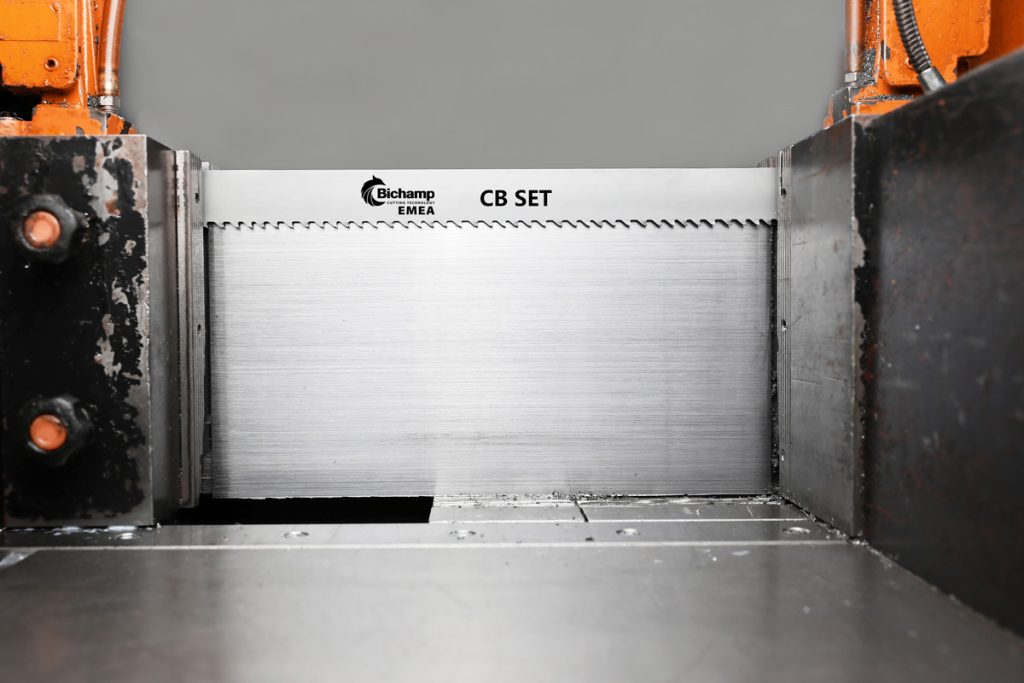

CB SET
Triple-Chip set design
Benefits
- Set style carbide tipped bandsaw blade, designed for multi-purpose applications cutting a wide variety of materials
Features
- Set style carbide tipped band saw blade based on a triple chip design
- Specially selected ultra-fine grain carbide tips for sharp teeth
- High quality blade through precision tip welding and grinding
Tool Steel
Copper/Brass/Bronze
Technical Data CB SET
| Width x Thickness | TPI | |||||||
|---|---|---|---|---|---|---|---|---|
| mm | inches | 0.7/1 | 0.75/1.25 | 1/1.25 | 1.4/2 | 2/3 | 3 | 3/4 |
| 20x0.9 | 3/4x0.035 | ■ | ||||||
| 27x0.9 | 1x0.035 | ■ | ■ | ■ | ||||
| 34x1.1 | 1-1/4x0.042 | ■ | ■ | ■ | ||||
| 41x1.3 | 1-1/2x0.050 | ■ | ■ | ■ | ||||
| 54x1.3 | 2x0.050 | ■ | ■ | ■ | ■ | |||
| 54x1.6 | 2x0.062 | ■ | ■ | ■ | ||||
| 67x1.6 | 2-5/8x0.062 | ■ | ■ | ■ | ||||
| 80x1.6 | 3.15x0.062 | ■ | ■ | ■ | ||||
—— Available with coating
