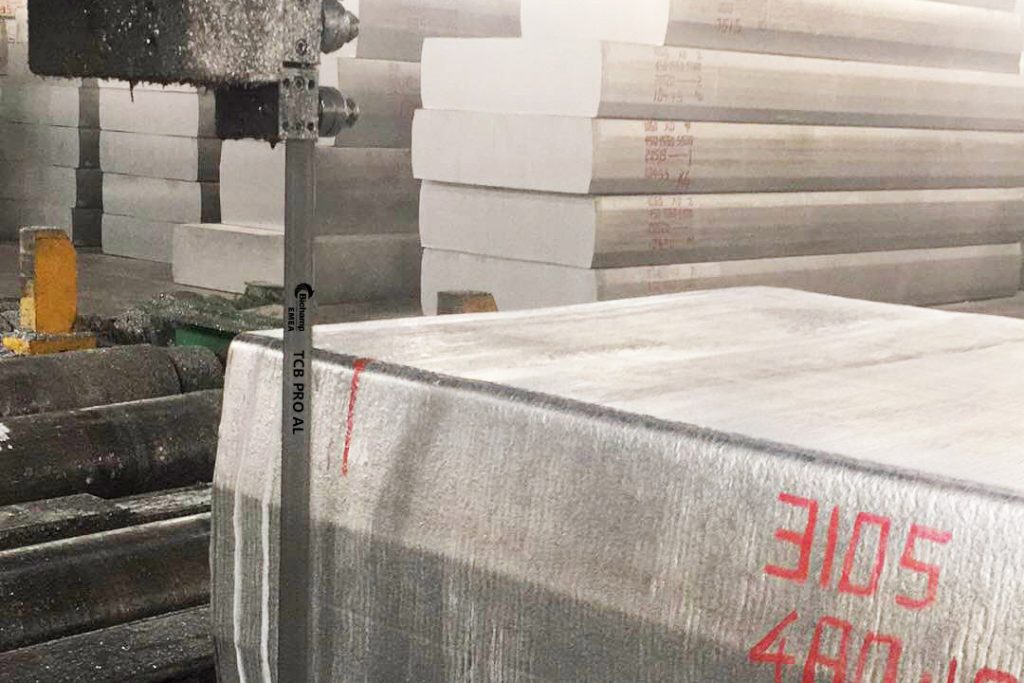

TCB PRO AL
Specialized for aluminum cutting
Benefits
- Specially designed multi-chip carbide tipped band saw blade for cutting aluminium and other non-ferrous materials
Features
- Multi-chip non-set style carbide tipped band saw blade
- Specially selected carbide grade for cutting non-ferrous materials
- Premium backing material for optimum fatigue life at high band speeds
Aluminum Alloy
Titanium Alloy
Technical Data TCB PRO AL
| Width x Thickness | TPI | ||||||
|---|---|---|---|---|---|---|---|
| mm | inches | 0.7/1 | 0.8/1.1 | 1/1.25 | 1.4/2 | 2/3 | 3/4 |
| 27x0.9 | 1x0.035 | ■ | ■ | ||||
| 34x1.1 | 1-1/4x0.042 | ■ | ■ | ■ | |||
| 41x1.3 | 1-1/2x0.050 | ■ | ■ | ■ | |||
| 54x1.3 | 2x0.050 | ■ | ■ | ■ | ■ | ■ | |
| 54x1.6 | 2x0.062 | ■ | ■ | ■ | ■ | ■ | |
| 67x1.6 | 2-5/8x0.062 | ■ | ■ | ■ | ■ | ■ | |
—— Available with coating
