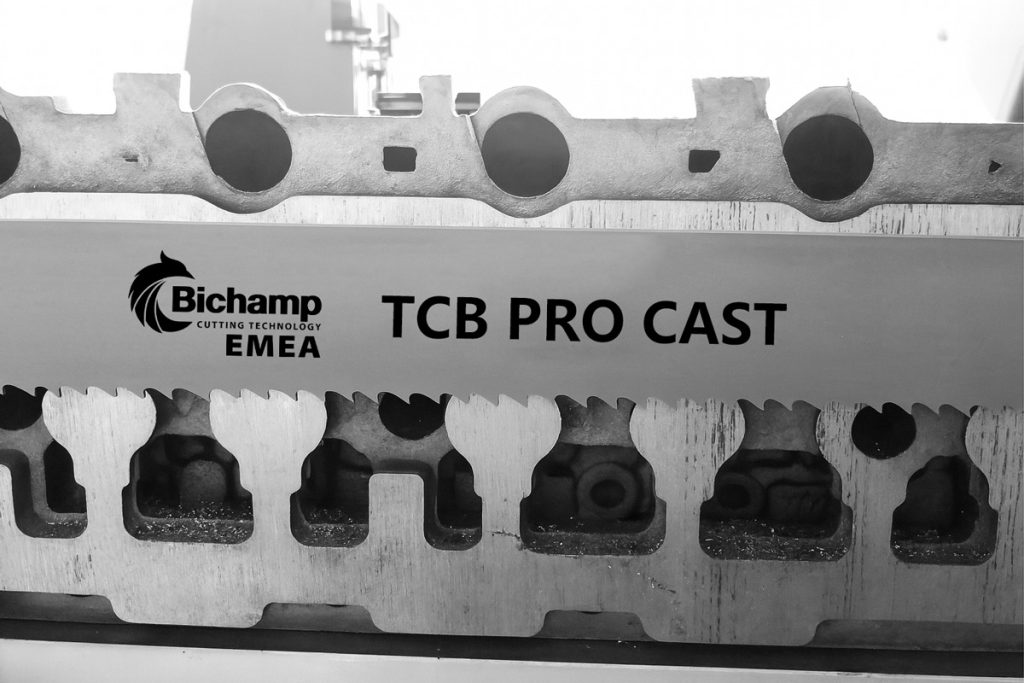

TCB PRO CAST
Specialized for aluminum engine blocks
Benefits
- Optimized for High Speed and High Efficiency aluminum cutting
- Enhanced chip removal reduces cutting force per tooth
- Non symmetrical grinding reduces vibrations and minimizes backing cracks
Features
- Non set, non symmetrical grinding design for precision cutting
- Advanced tooth geometry engineered for casting materials
Aluminum Alloy
Copper/Brass/Bronze
Titanium Alloy
Technical Data TCB PRO CAST
| Width x Thickness | TPI | ||||||
|---|---|---|---|---|---|---|---|
| mm | inches | 0.7/1 | 0.75/1.25 | 0.8/1.1 | 1.4/2 | 2/3 | 3/4 |
| 27x0.9 | 1x0.035 | ■ | ■ | ||||
| 34x1.1 | 1-1/4x0.042 | ■ | ■ | ||||
| 41x1.3 | 1-1/2x0.050 | ■ | ■ | ■ | |||
| 54x1.3 | 2x0.050 | ■ | ■ | ■ | |||
| 54x1.6 | 2x0.062 | ■ | ■ | ■ | ■ | ■ | |
—— Available with coating
Process Reliability
We deliver reliability – with advanced production facilities, maximum availability, and the highest standards of quality control.
Planning Capability
With exceptionally short delivery times, flexible order handling, and direct communication, we ensure high delivery reliability.
Cost-per-Cut Optimization
We maximize productivity and cost efficiency with tailored consulting that lowers the cost per cut.
