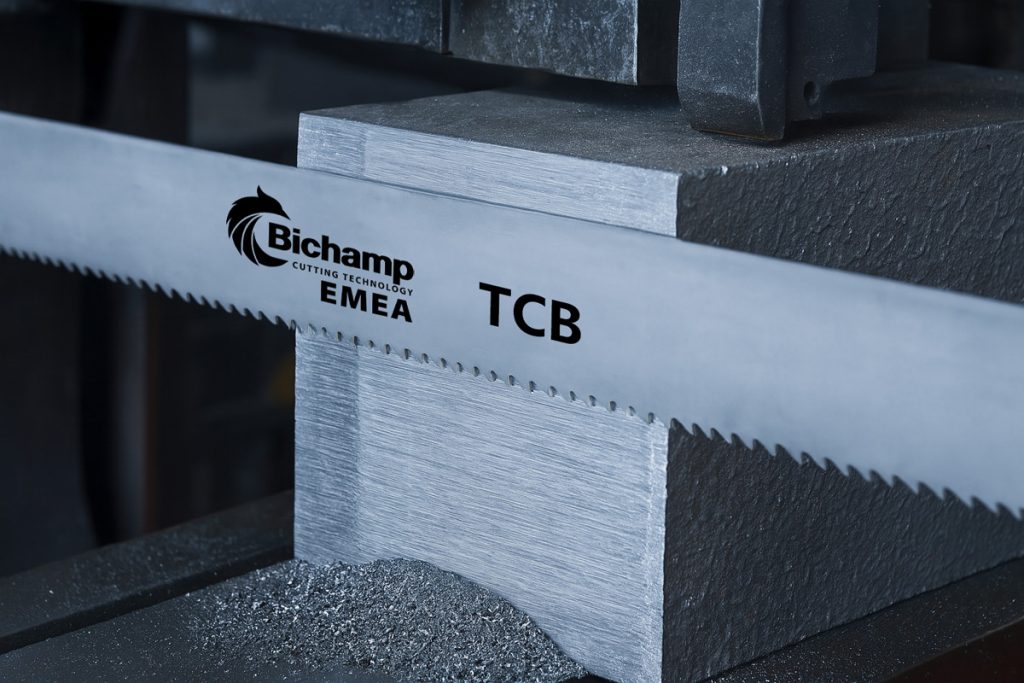

TCB
Non-set Triple-Chip design
Benefits
- A general purpose blade for high efficiency cutting with non-set style for consistent performance
Features
- Traditional Triple Chip tooth geometry
- Fine tooth grinding improves cut quality
Titanium Alloy
Technical Data TCB
| Width x Thickness | TPI | ||||||
|---|---|---|---|---|---|---|---|
| mm | inches | 0.7/1 | 1.0/1.4 | 1.4/2 | 2/3 | 3 | 3/4 |
| 27x0.9 | 1x0.035 | ■ | ■ | ■ | |||
| 34x1.1 | 1-1/4x0.042 | ■ | ■ | ■ | |||
| 41x1.3 | 1-1/2x0.050 | ■ | ■ | ■ | |||
| 54x1.3 | 2x0.050 | ■ | ■ | ■ | ■ | ||
| 54x1.6 | 2x0.062 | ■ | ■ | ■ | ■ | ■ | |
| 67x1.6 | 2-5/8x0.062 | ■ | ■ | ■ | ■ | ||
| 80x1.6 | 3.15x0.062 | ■ | ■ | ■ | ■ | ||
—— Available with coating
