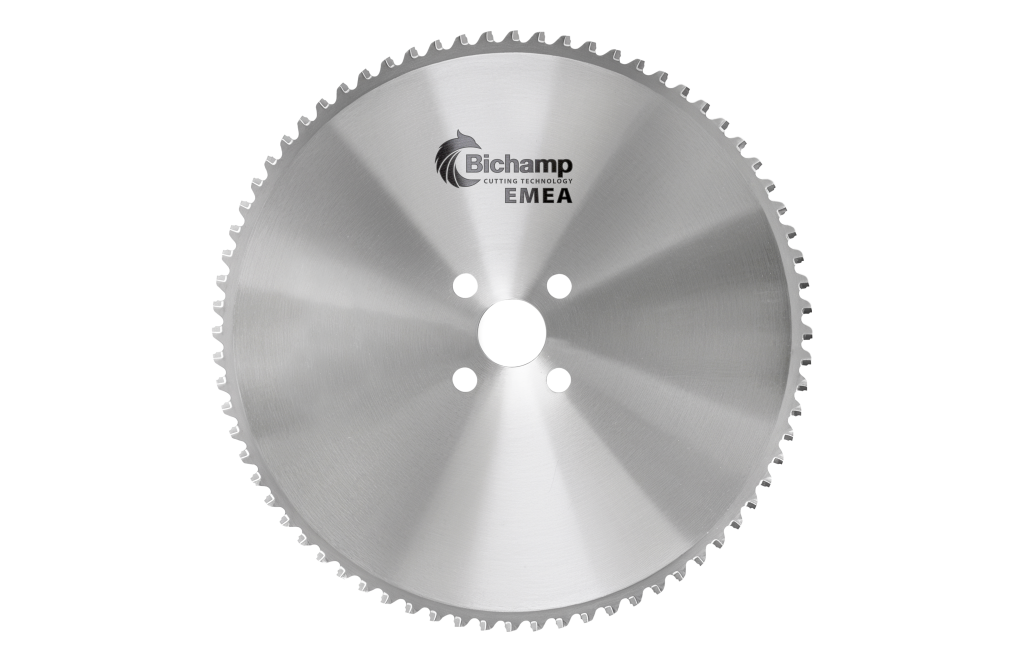

General Purpose
Versatile performance for general steel cutting
Features
- Equipped with Cermet Tips
- Excellent wear resistance and edge strength
- Coated and uncoated options available
- Optimized tooth geometry for stable cutting
- Cost-effective for high-volume cutting
Carbon Steel/
Structural Steel
Structural Steel
Alloy Steel
Bearing Steel/
Forging Steel
Forging Steel
Technical Data General Purpose
| Outer Diameter (mm) | Plate Thickness (mm) | Kerf Thickness (mm) | Bore Diameter (mm) | Number of Teeth |
|---|---|---|---|---|
| 250 | 1.7/1.75 | 2.0 | 32 | 60T/72T/80T |
| 285 | 1.7/1.75 | 2.0 | 32 | 60T/72T/80T |
| 300 | 1.7/1.75 | 2.0 | 32 | 60T/72T/80T |
| 315 | 2.0 | 2.25 | 32 | 60T/72T |
| 330 | 2.0 | 2.25 | 32 | 60T/72T |
| 360 | 2.25 | 2.6 | 40/50 | 60T/72T/80T |
| 380 | 2.25 | 2.6 | 40/50 | 60T/72T/80T |
| 400 | 2.25 | 2.6 | 40/50 | 60T/72T/80T |
| 425 | 2.25 | 2.7 | 50 | 80T |
| 460 | 2.25 | 2.7 | 50 | 60T/72T/80T |
| 485 | 2.25 | 2.7 | 50 | 60T/72T/80T |
—— Coated Available
Process Reliability
We deliver reliability – with advanced production facilities, maximum availability, and the highest standards of quality control.
Planning Capability
With exceptionally short delivery times, flexible order handling, and direct communication, we ensure high delivery reliability.
Cost-per-Cut Optimization
We maximize productivity and cost efficiency with tailored consulting that lowers the cost per cut.
